| Chapter 2. Cut-off Machines and Tools
Guillotine
Straight Cutting of a Thin Sheet
When an aluminum alloy sheet, which has less than 2 mm thickness, or a stainless steel sheet, which has less than 1 mm thickness, are cut down, a guillotine as shown in Figure 1 is used. The cutting process is very easy as shown in Figs2 - 4, but it can only cut in a straight.
Fig.1, Guillotine
| A guillotine is used for cutting a thin material. |
|

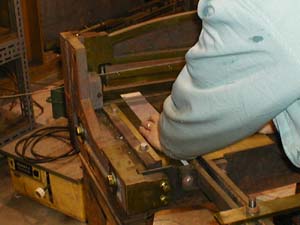

Fig.2, Fixing the Material
| A marked sheet is set the position for cutting to the edge. |
|
Fig.3, Step on a Pedal Strongly
| The machine is actuated by stepping on the pedal. |
|
Fig.4, Cut Material
| The guillotine does leave a small burr that will need to be removed. |
|
