Modified KRISO Tanker (KVLCC2M)

| Description | Geometry |


KVLCC2M

KVLCC2

Description:

The original hull form KVLCC2 was conceived by Korean Institute of Ships and Ocean Engineering(KRISO) to provide data for both explication of flow physics and CFD validation for a modern (ca. 1997) tanker ship with bulbous bow.

KVLCC2M was obtained by fairing the original IGES data of KVLCC2 during the manufacturing process of a model ship for tank tests. Since the hull geometry became slightly different from the original IGES data , we named it KVLCC2M and will use this geometry as the standard data for the CFDWS2005. The experimental data sets will be provided by NMRI.

Comparison of KVLCC2 and KVLCC2M
Principal dimensions KVLCC2 KVLCC2M
Length between perpendiculars, LPP [m] 5.5172 4.9700
Breadth, B / LPP [-] 0.1813 0.1813
Draft, d / LPP [-] 0.0650 0.0650
Wetted surface area, S0 / LPP2 [-] 0.2656 0.2668
Block coefficient, Cb [-] 0.8098 0.8099
Load waterline coefficient, Cw [-] 0.9077 0.9024
Midship section coefficient, Cm [-] 0.9980 0.9979
lcb (+fwd.) [%LPP] 3.5000 3.5260

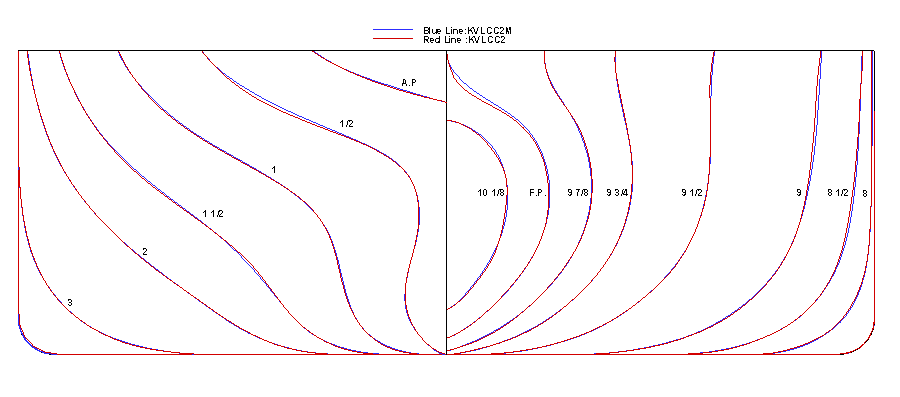

[Comparison of KVLCC2 and KVLCC2M bodyplans]

Information concerning the KVLCC2 can be found on the KRISO web site.
